Deity Theos DXTX (Global) Plug-On XLR Transmitter
Please contact us on +45 3120 7021 or info@nordicproaudio.com
Capture the best your XLR microphones have to offer. Transmit and record anywhere.
The Deity DXTX is a cutting-edge plug-on transmitter designed for professionals seeking uncompromising audio quality and flexibility. It offers simultaneous 32-bit float recording and wireless transmission, ensuring pristine audio capture without the need for meticulous gain staging. Equipped with a Neutrik locking XLR input, the DXTX accommodates a wide range of microphones, providing 48V phantom power for condenser mics and 5V bias for electret mics. Its onboard microSD recorder supports cards up to 128GB, offering ample storage for extended recording sessions.
Features:
- Color Screen
- 550MHz ~ 960MHz; ≤100mW*

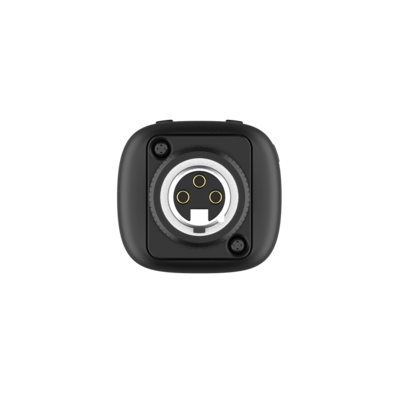

- Featuring a Neutrik XLR Locking Input

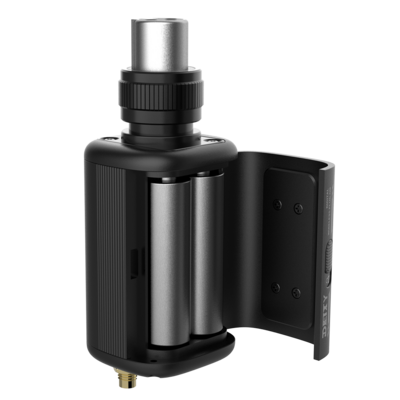

- Dual AA Battery; Up To 14Hrs** of Battery Life
- 32-Bit Float / 24-Bit – With Timecode (Supports ≤128Gb MicroSD)
- Remote Control the DXTX with BitConnectify™ 2.0; Up To 75m Bluetooth Range
- Audio Input compatible feature analog 5V Mic Bias and Line signals
- Analog Limiter
- Supports 48V Phantom Power
- External SMA Antenna
- External Power via USB-C
- Firmware Updatable
Designed for versatility, the DXTX operates across a broad UHF spectrum from 550MHz to 960MHz, with a maximum RF output of 100mW, ensuring reliable transmission even in challenging environments. The device features an analog limiter to prevent clipping during transmission, while preserving the integrity of the 32-bit float recordings. Its dual AA battery configuration provides up to 14 hours of operation, and the USB-C port allows for external power options, catering to various production needs.
The DXTX integrates seamlessly with Deity's BitConnectify™ 2.0 technology, enabling remote control via Bluetooth up to 75 meters. This feature allows users to adjust settings, monitor battery status, and control recording functions without physically accessing the device. The full-color display offers clear visibility of operational parameters, and the external SMA antenna ensures optimal signal strength. Additionally, the DXTX is firmware updatable, ensuring it remains current with the latest technological advancements.
Ideal for filmmakers, broadcasters, and content creators, the Deity DXTX offers a robust solution for high-quality audio capture. Its combination of advanced recording capabilities, flexible power options, and remote control functionality makes it a valuable asset in any professional audio setup. Whether used on a boom pole, handheld, or integrated into a larger system, the DXTX delivers reliable performance and exceptional sound quality.
- 1x DXTX Plug-On Transmitter
- 2x AA Deity Batteries
- 1x Antennas
- 1x Antenna Cut Guide
DLTX Transmitter:
- RF Modulation: Proprietary Digital RF Modulation
- RF Frequency Ranges: According to different regions, the legitimate frequency bands in line with local conditions are allocated
- RF Frequency Step: 100 kHz
- RF Bandwidth: 200 kHz
- Minimum Frequency Interval: 700 kHz
- Antenna Connector: 50 Ω SMA
- Power Output: 10 / 25 / 50 / 100 mW – Software Selectable (varies by regulation)
Transmitter Audio:
- Dynamic Range: 105 dB
- Distortion: < 0.5%
- Frequency Response: 20 ~ 20 kHz
- Low Cut: OFF / 75 Hz / 100 Hz / 150 Hz
- Mic Power: MIC-5V, MIC-48V, LINE
- Mic Connector: XLR 3 Pin / XLR 5 Pin
- Input Gain: 0 ~ +42 dBu
- ADC Bit-Depth: 2 x 24 bit
- ADC Sampling-Rate: 48 kHz
Timecode Reader / Generator:
- Clock Accuracy: 0.15 PPM (1 Frame in 72 Hours)
- Timecode Type: LTC (SMPTE)
- Timecode Frame-Rates: 23.98, 24, 25, 29.97, 29.97DF, 30
Internal Recording:
- Media: MicroSD Card (Flash Memory)
- File Format: .wav
- Sample Rate: 48 kHz
- Record Format: 24 / 32 bit float
Power:
- Battery Type: AA × 2
- Battery Life (48V DEITY AA): 8+ Hours
Physical:
- Dimensions (H x W x D): 119 x 44.8 x 42 mm
- Weight:
- Without battery and antenna: 190 g
- Without battery and with antenna: 196 g
- With battery and antenna: 228 g
- Operating Temperature: -20°C ~ 45°C (-4°F ~ 113°F)
