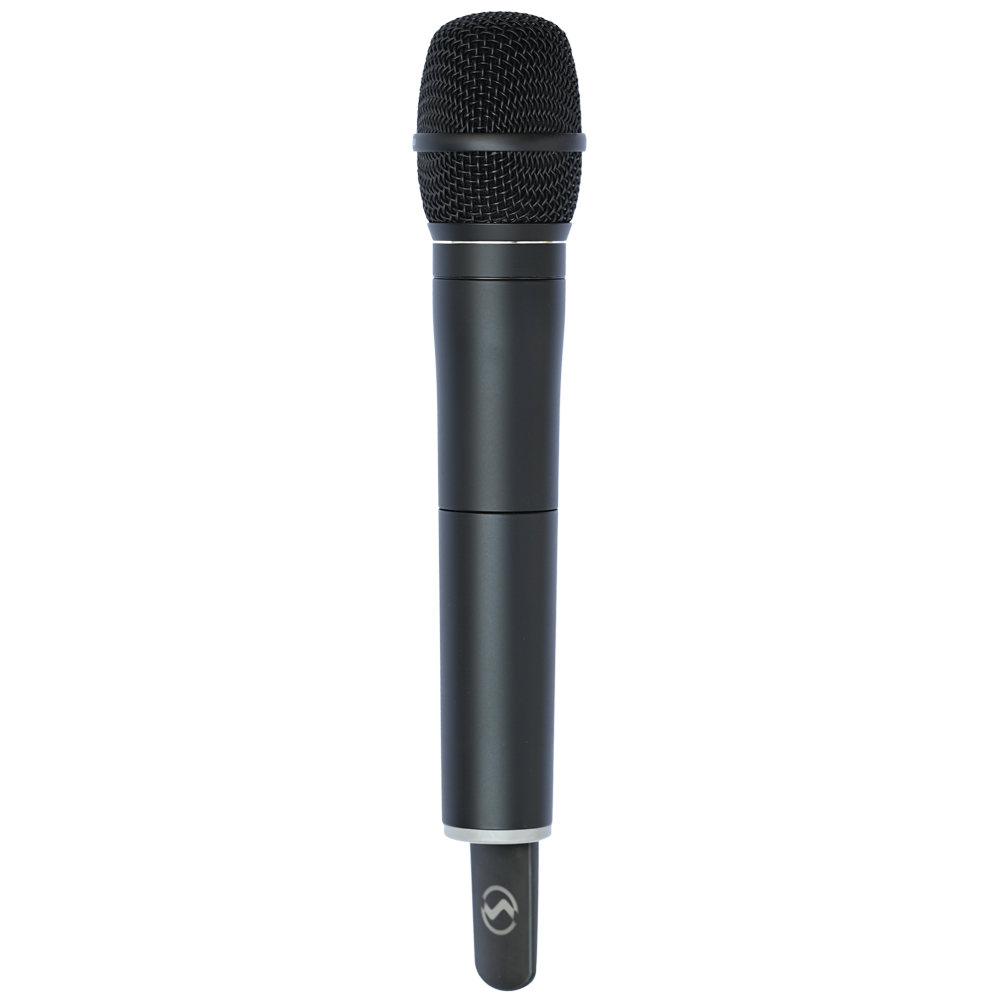

Wisycom MTH610 Wideband Handheld Transmitter

Call for price
All amounts are ex. VAT
Ordering number:
MTH610
Got any questions or in the need of advice?
Please contact us on +45 3120 7021 or info@nordicproaudio.com

MTH610 is a handheld transmitter especially designed for professional wireless microphone applications – ideal for interviews, live events, and theaters.

It is very easy and quick to use thanks to the OLED display, 1 joggle selector, and 2 buttons for straight setup of gain and channel.

It has been especially designed for robustness against noise and self-interference thanks to a dual power amplifier and a special intermodulation cancellation circuit.
MTH610 benefits from LINEAR technology, allowing equally spaced frequency allocation intermodulation-free.

It can change modulation by software, operating in Wideband or Narrowband.
Thanks to LINEAR and NARROWBAND features, it allows 5 channels in 1 MHz and 33 channels in 1 DVB-T 8 MHz, without intermodulation.

FEATURES:

  • Multi-band design with the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
  • Monitor & control with LoRa and Bluetooth via the Wisycom BT App to adjust parameters in real time
  • Advanced LINEAR technology eliminates intermodulation distortion for more robust signal, extended range, and allows operation of multiple transmitters in close proximity without an intermod frequency plan
  • Compatible with thread-on capsules using a 1.25” opening and 28 thread pitch (e.g. DPA, EV, Shure®, Heil Sound™, Earthworks®, Telefunken® and more)
  • Embedded recorder to record directly to the internal memory card with integrated Linear Time Code decoding
  • DSP-based signal processing for easy switching between wide and narrow band operation
  • Proprietary waterproof magnetic 5-pin connector supporting:
    • USB High Speed
    • Power (incl. battery charging)
    • LTC Timecode Sync
  • Rechargeable via Lithium battery L14430 using USB magnetic cable or upcoming LBC610 docking station
  • ENS compander for crystal-clear sound
  • Low-pass audio filter removes ultrasonic interference from devices like focus pullers
  • Thin and ergonomic body design
  • Quick setup with joggle selector and two quick access buttons (for level/channel)
  • Hardware supports real-time position monitoring with an advanced user interface
  • Patent No. US AE-204460
  • Patent No. IT A-211495
  • Microphone head not included

Example of common compatible microphone heads:

  • DPA Microphone: 2028, d:facto™ 4018 (with SLI adapter)
  • Shure®: Beta58A, Beta87A, Beta87C, KSM9
  • 1x Wisycom MTH610 Wireless Handheld Transmitter
  • 1x Wisycom L14430 Rechargeable Lithium Battery
  • 1x Wisycom CAUSBM5P - USB-C to Magnetic Connector Cable

MTH610 – Wideband Handheld Transmitter

RF Specifications:

  • Frequency Ranges: 470 to 1260 MHz (depends on country – see Configurations)
  • Switchable Channels: 2400 channels, managed in 40 groups of 60 frequencies, completely user-programmable
  • Switching Window: Up to 362 MHz (depending on band – see Configurations)
  • Frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
  • Frequency Error: ±2.5 ppm (within rated temperature range)
  • RF Power: 10 mW / L10 mW / 20 mW / L20 mW / 50 mW / 100 mW (*on specific configurations)
  • Modulation: Wideband and Narrowband (DSP-based digital signal processing)
  • Nominal Deviation: ±40 kHz (Wideband) / ±25 kHz (Narrowband)
  • Peak Deviation: ±56 kHz (Wideband) / ±35 kHz (Narrowband)
  • Spurious Emissions: < 2 nW
  • Telemetry Features:
    • Digitally modulated sub-carrier for:
      • Tone-squelch operation
      • Remote battery monitoring
      • Compander and modulation control
      • Optional PTT (Push-to-Talk) operation

Audio Specifications:

  • Noise Reduction System: ENS – Wisycom ultra-high performance compander
  • AF Bandwidth / Frequency Response (dBa):
    • Narrowband (NB): 45 Hz – 17 kHz (±3 dB)
    • Wideband (WB): 45 Hz – 20 kHz (±3 dB)
  • Distortion: < 0.3% (typ. 0.15%)
  • SNR (Analogue):
    • Wideband: typ. 115 dB (A) rms @ 40 kHz deviation, typ. 121 dB (A) rms @ 56 kHz
    • Narrowband: typ. 115 dB (A) rms @ 25 kHz deviation, typ. 121 dB (A) rms @ 35 kHz
  • Audio Input Connector: Directly interchangeable microphone heads
  • Audio Input Level: Adjustable in 1 dB steps
  • Max Input Level: 6 dBu
  • Max Sound Pressure Level (SPL):
    • 144 dB SPL with DPA 2028
    • 152 dB SPL with DPA d:facto™ 4018
    • 155 dB SPL with Neumann KK 105 S
    • 149 dB SPL with Shure® KSM9

Microphone Compatibility:

  • Compatible Heads: Most common microphone heads
  • Examples:
    • DPA: 2028, d:facto™ 4018 (with SLI adapter)
    • Shure®: Beta58A, Beta87A, Beta87C (with HHA-SHS adapter)

Internal Recording:

  • Storage Media: Removable MicroSD card
  • File Format: .wav (BWF)
  • Timecode: Linear Timecode decoding
  • Bit Rate: 24 bit / 32 bit
  • Sampling Rate: 48 kHz

Interface & Display:

  • Managing Interface: Bluetooth and LoRa + proprietary waterproof magnetic 5-pin connector (USB HS, power, LTC)
  • LED Indicator: Bicolor (red & green)
  • Battery Lifetime Indication: Percentage or time (minute/second)
  • Display: High contrast white OLED (128 x 32 pixels)
  • PTT Function: Available with optional accessory

Power:

  • Power Supply:
    • 2 x AA Alkaline
    • 2 x AA NiMH
    • 2 x 14430 Li-ion (internally charged)
  • Battery Life:
    • Approx. 16 hours @ 10 mW (14430 Li-ion)
    • Approx. 12 hours @ 100 mW (14430 Li-ion)
    • Approx. 13 hours @ 10 mW (Alkaline)

Physical:

  • Temperature Range: -10°C ~ +55°C
  • Dimensions (L x Ø): 200 x 37 mm (without microphone head)
  • Weight: Approx. 220 g (without microphone head)
