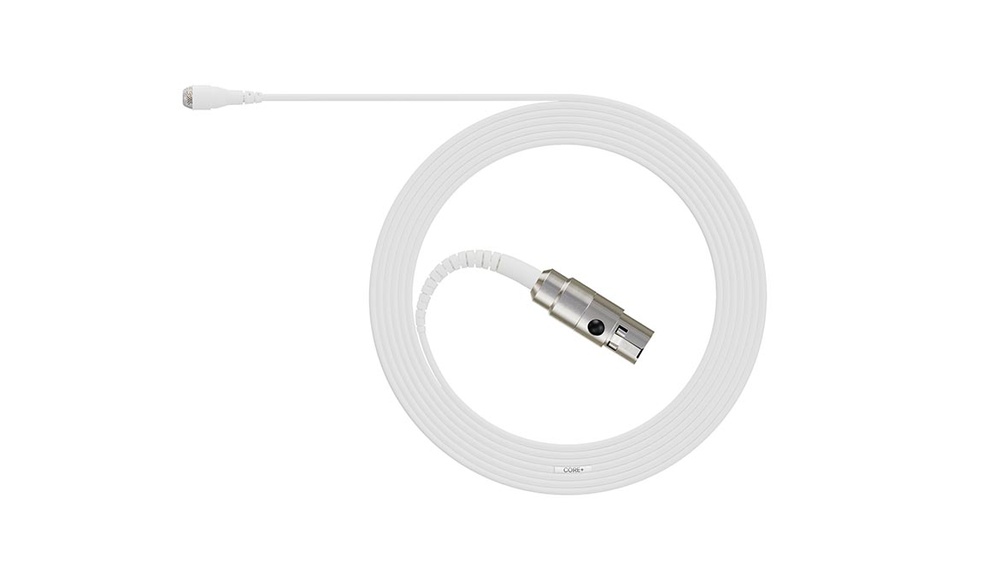

DPA 4060 CORE Omni Mic, Normal SPL, White, TA4F Mini-XLR
Please contact us on +45 3120 7021 or info@nordicproaudio.com
The Industry Standard Lav Mic
The 4060 Omni Mic is the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. We originally designed this microphone for use with wireless systems in theaters but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments.
Miniature
This microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.
This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.
- Exceptional audio quality
- Uniform, consistent sound between DPA mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
Rugged and Tough
The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
Acoustic Response
The acoustic response of the 4060 Series can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the 4071, which includes a fixed grid). The pre-fitted Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz. It should be used when the microphone is mounted on the performer’s head as well as in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10 dB soft boost around 12 kHz for applications where the microphones chest-placement is preferred. Both of these grids are made of anodized stainless steel, giving a tough and scratch resistant surface. They can be detached from the microphone and cleaned of sweat, makeup, etc.
DPA 4060 Frequency Response:
DPA 4060 Polar Pattern:
- 1x 4060 Core Omni Microphone, Normal SPL
- 1x Soft-boost Grid
- 1x High-boost Grid
Directional Pattern: | Omnidirectional |
---|---|
Principle of operation: | Pressure gradient |
Cartridge type: | Pre-polarized condenser |
Frequency response: | 20 Hz - 20 kHz |
Dynamic range: | Typ. 106 dB |
Color: | White |
Connector: | TA4F Mini-XLR |
Effective frequency range ±2 dB: | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
Sensitivity, nominal, ±3 dB at 1 kHz: | 20 mV/Pa; -34 dB re. 1 V/Pa |
Equivalent noise level, A-weighted: | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
Equivalent noise level, ITU-R BS.468-4: | Typ. 35 dB (max. 38 dB) |
Distortion, THD < 1%: | 126 dB SPL RMS, 129 dB SPL peak |
Max. SPL, THD 10%: | 134 dB SPL peak |
Rated output impedance: | 30 - 40 Ω |
Cable drive capability: | Up to 300 m (984 ft) with DAD6001-BC XLR adapter |
Power supply (for full performance): | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
Current consumption: | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
Polarity: | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
Sensitivity selection tolerance (at 1 kHz): | ±1.5 dB |
Weight: | 7.5 g (0.26 oz) incl. Cable and MicroDot connector |
Microphone diameter: | 5.4 mm (0.21 in) |
Microphone length: | 12.7 mm (0.5 in) |
Cable length: | 1.8 m (5.9 ft) |
Temperature range: | -40°C to 45°C (-40°F to 113°F) |
Relative humidity (RH): | Up to 90% |
