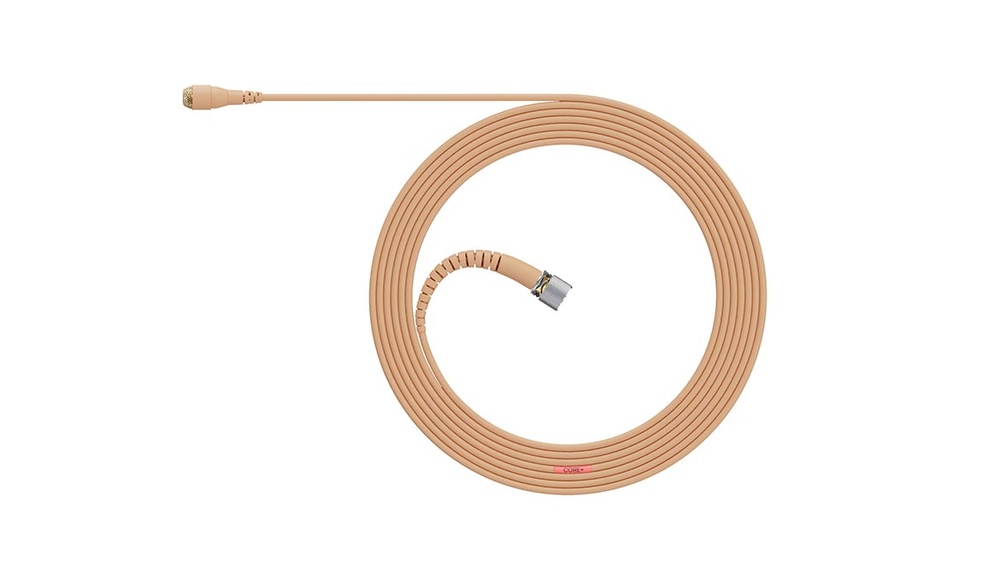

DPA 4061 CORE Omni Mic, Loud SPL, Beige, MicroDot

Color
Connector
DKK 2.970,00
All amounts are ex. VAT
Ordering number:
4061-OC-C-F00
GTIN number:
5713055011529
Got any questions or in the need of advice?
Please contact us on +45 3120 7021 or info@nordicproaudio.com

This microphone is acoustically identical to the DPA 4060 Omni Core Microphone, Normal SPL, but its sensitivity is adjusted to accommodate higher sound pressure levels (SPLs).

The DPA 4061 Omni Core Microphone, Loud SPL can handle SPL up to 144 dB peak before clipping, making it one of the best miniatures for use on very loud sound sources, such as some instruments and human voices. In comparison, the 4061 is about 10 dB less sensitive than the 4060 and therefore works well when used for hidden applications, for example mounted on the head or forehead of a theater performer. In this placement, the sound pressure level is about 10 dB louder than what you encounter with chest placement (lapel microphone).

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

DPA 4061 Frequency Response:

DPA4061_FreqRe Typical response of a 4061

DPA 4061 Polar Pattern:

DPA4061_PolarPattern Typical directional characteristics of a 4061

  • 1x 4061 Core Omni Microphone, LOUD SPL
  • 1x Soft boost Grid
  • 1x High boost grid
Directional Pattern:Omnidirectional
Principle of operation:Pressure gradient
Cartridge type:Pre-polarized condenser
Frequency response:20 Hz - 20 kHz
Dynamic range:Typ. 111 dB
Color:Beige
Connector:MicroDot
Effective frequency range ±2 dB:Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz:6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted:Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4:Typ. 38 dB (max. 40 dB)
Distortion, THD < 1%:134 dB SPL RMS, 137 dB SPL peak
Max. SPL, THD 10%:144 dB SPL peak
Rated output impedance:30 - 40 Ω
Cable drive capability:Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance):For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption:Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Polarity:Positively increasing sound pressure produces positive going voltage on MicroDot pin
Sensitivity selection tolerance (at 1 kHz):±1.5 dB
Weight:7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter:5.4 mm (0.21 in)
Microphone length:12.7 mm (0.5 in)
Cable length:1.8 m (5.9 ft)
Temperature range:-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH):Up to 90%
